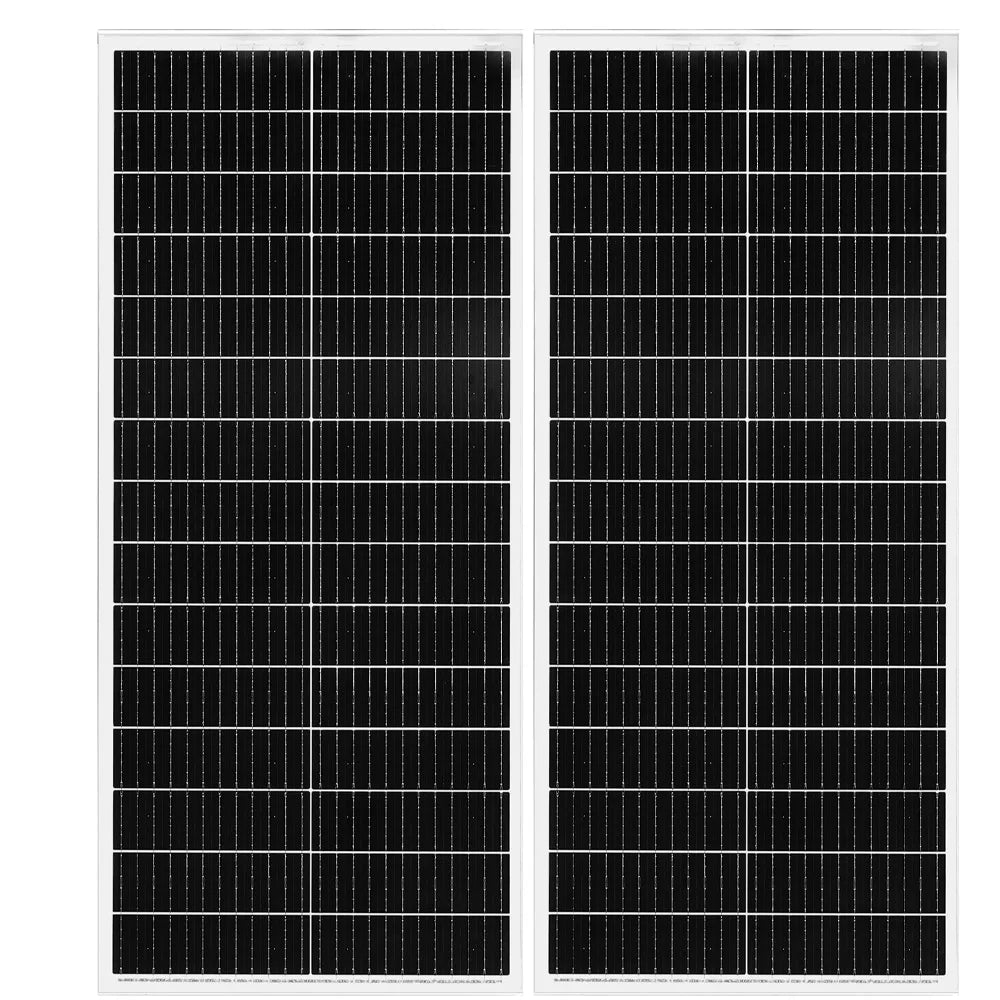

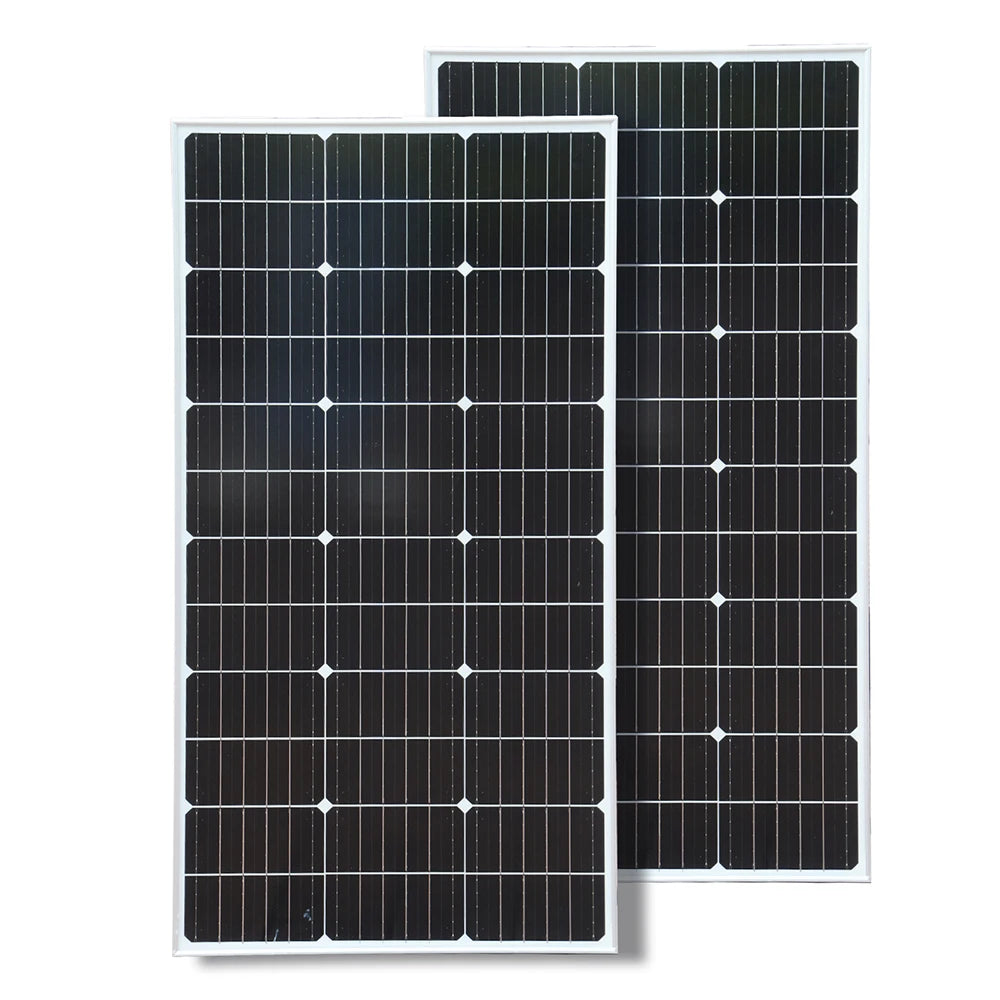

BOGUANG Rigid Solar Panel Set Glass SolarPanel 100W 200W (2pcs 100W Rigid panel solar ) 18V Photovoltaic charging for battery Monocrystalline China

16.5V 100W Specification:

100W solar panel

Monocrystalline high efficiency

Rated power: 100W

Open Circuit Voltage (Voc): 19.8V

Maximum supply voltage (Vpm): 16.5V

Short circuit current (Isc): 6.36A

Working current (Iop): 6.06A


Output tolerance: ±5%

Temperature range: -40℃ to +80℃

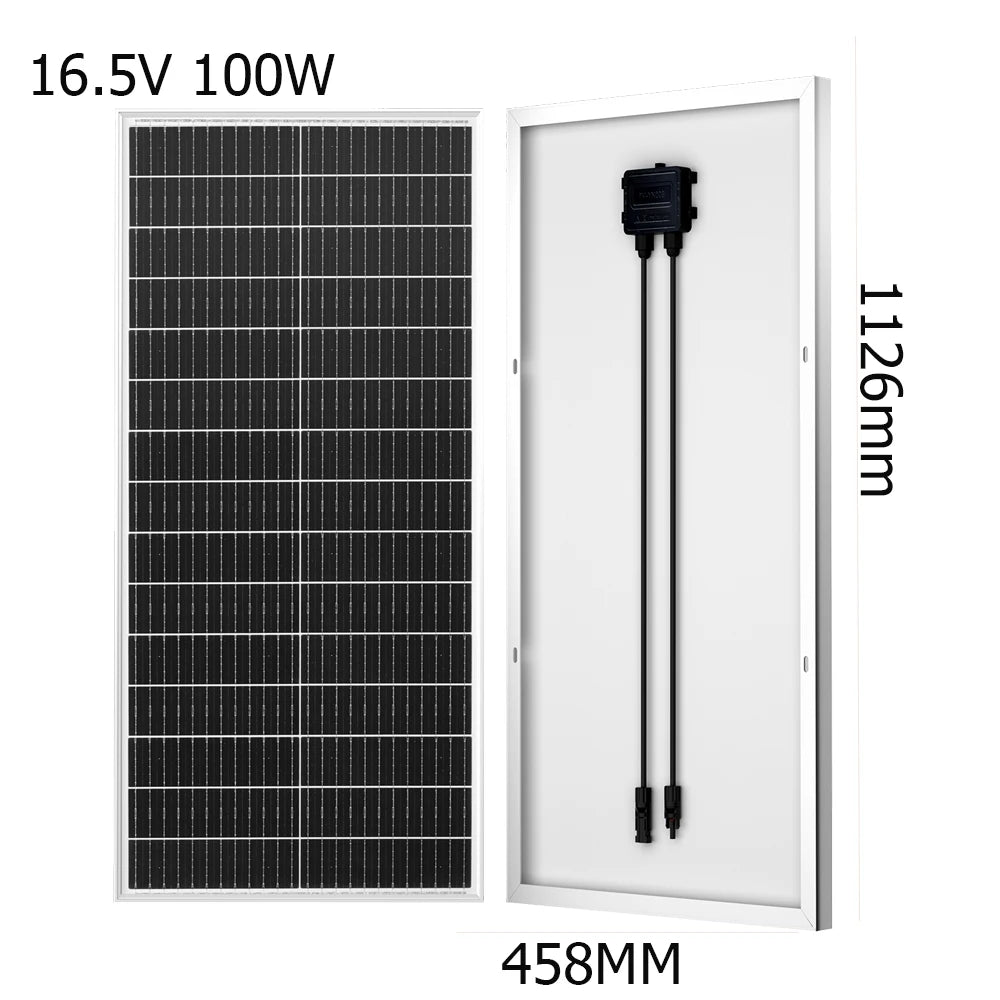

Size: 44.33x18.03x0.98inch (1126*458*25mm)

Weight: 13.22 lbs (6kg)


Surface material Toughened glass

Back film Color White

Output port 0.9 m long PV connector wire

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

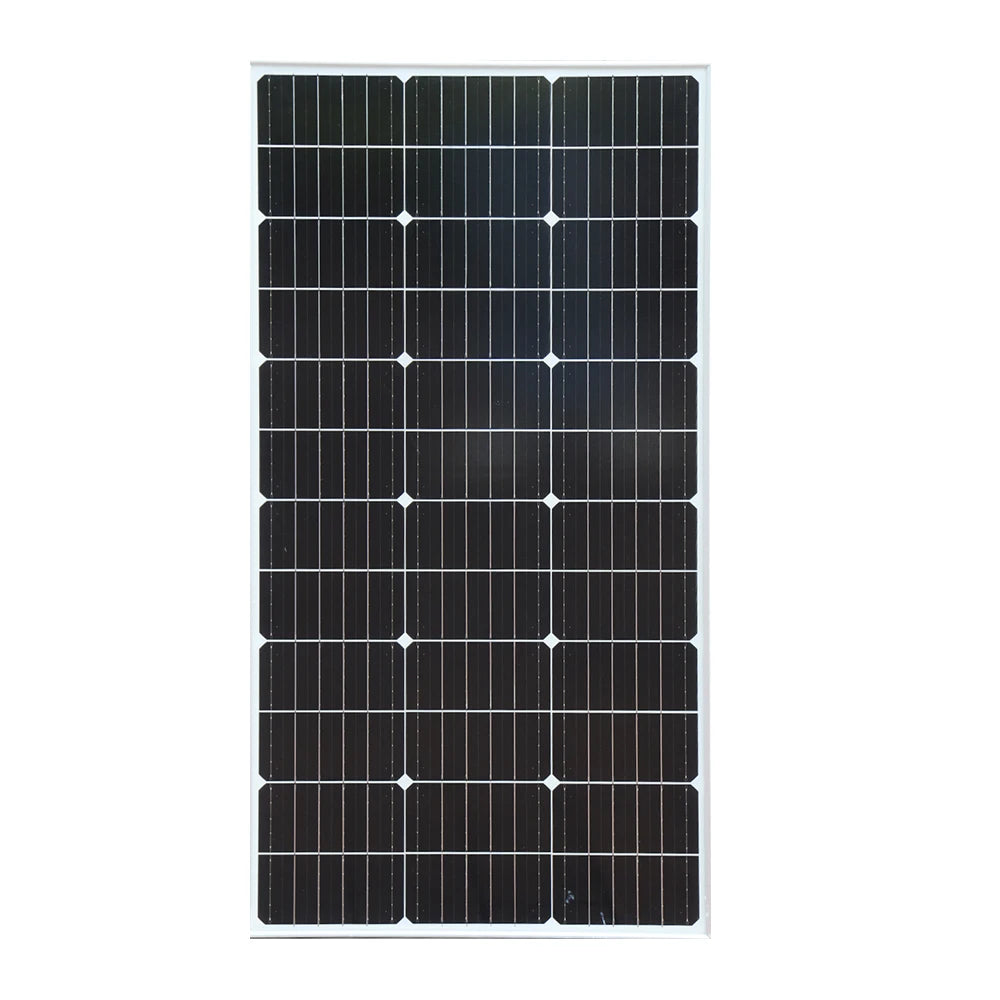

100W solar panel

Monocrystalline high efficiency

Rated power: 100W

Open Circuit Voltage (Voc): 23.7V

Maximum supply voltage (Vpm): 19.8V

Short circuit current (Isc): 5.55 A

Working current (Iop): 5.05A

Output tolerance: ±3%

Temperature range: -40℃ to +80℃

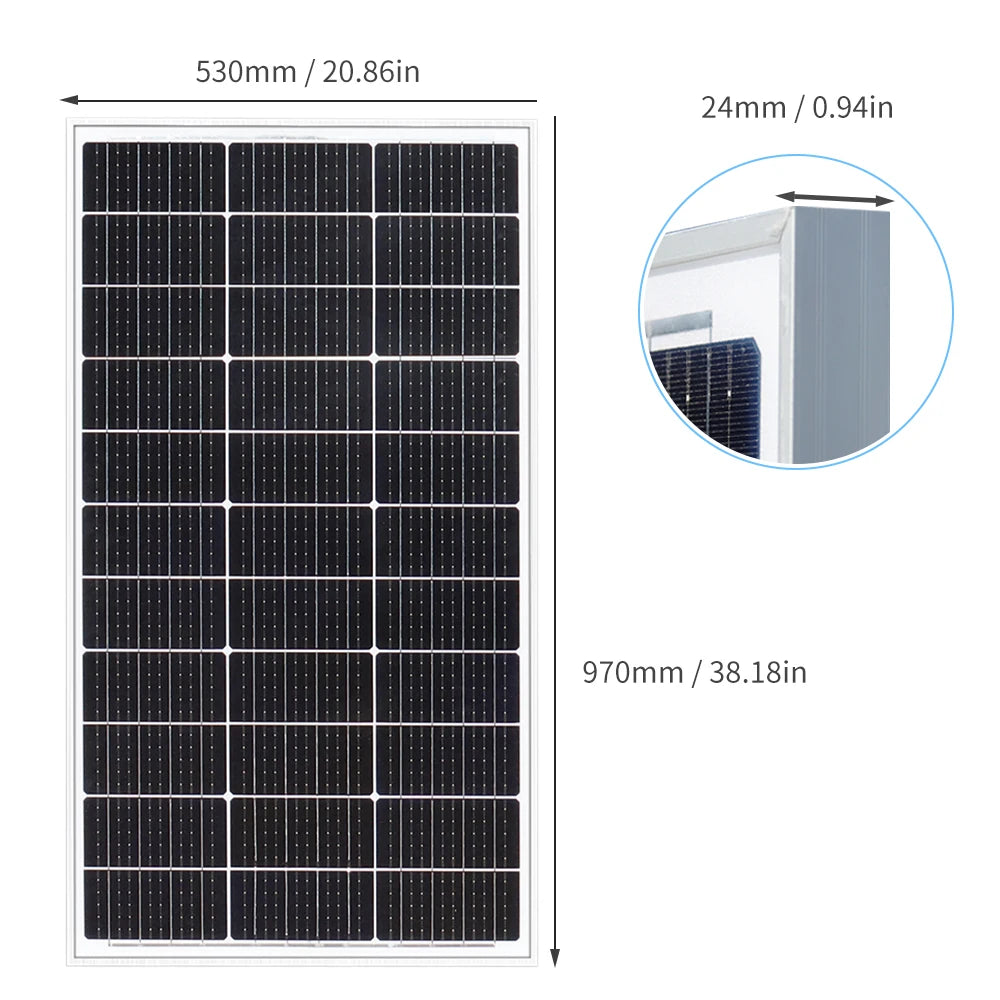

Size: 41.33x20.87x0.98inch (105*53*2.5cm)

Weight: 8.82 lbs (4kg)

Surface material Toughened glass

Back film Color White

Output port 0.9 m long PV connector wire

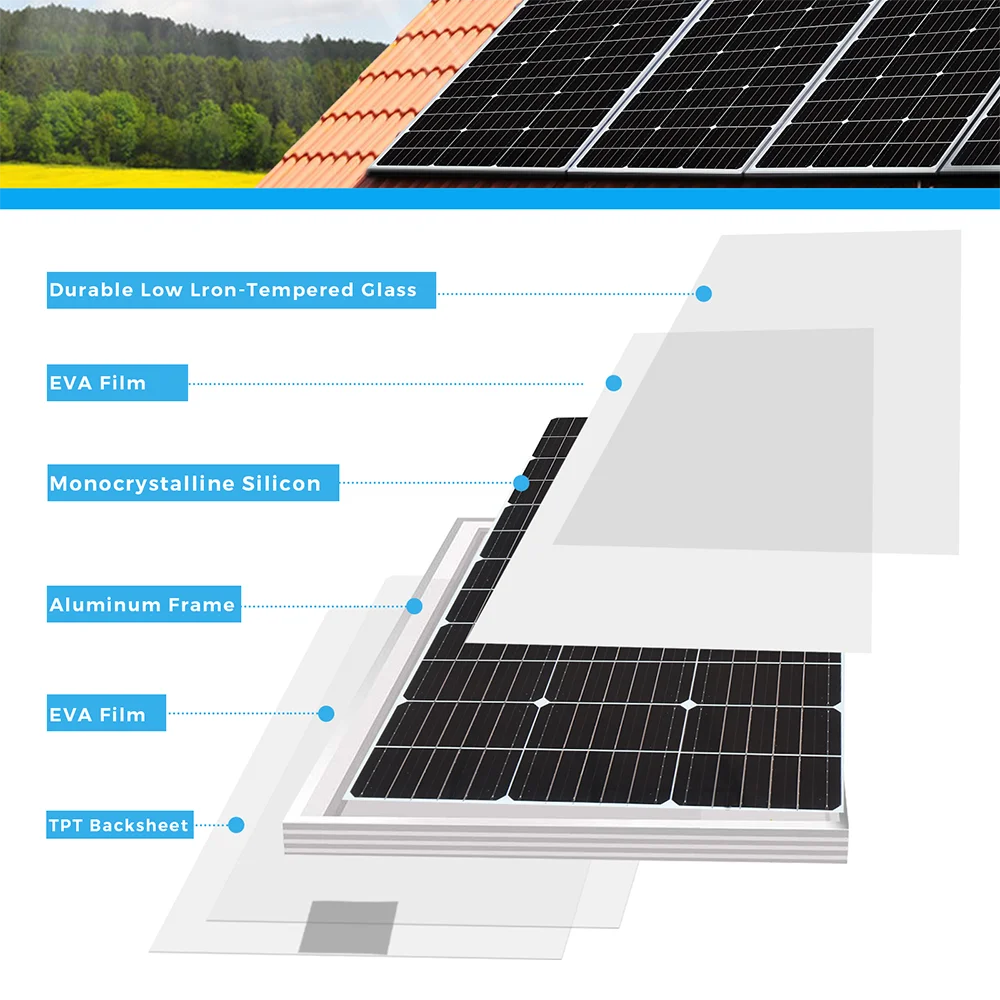

The surface is tempered glass, Thickened aluminum alloy frame.waterproof, snowproof, resistant to small hail.

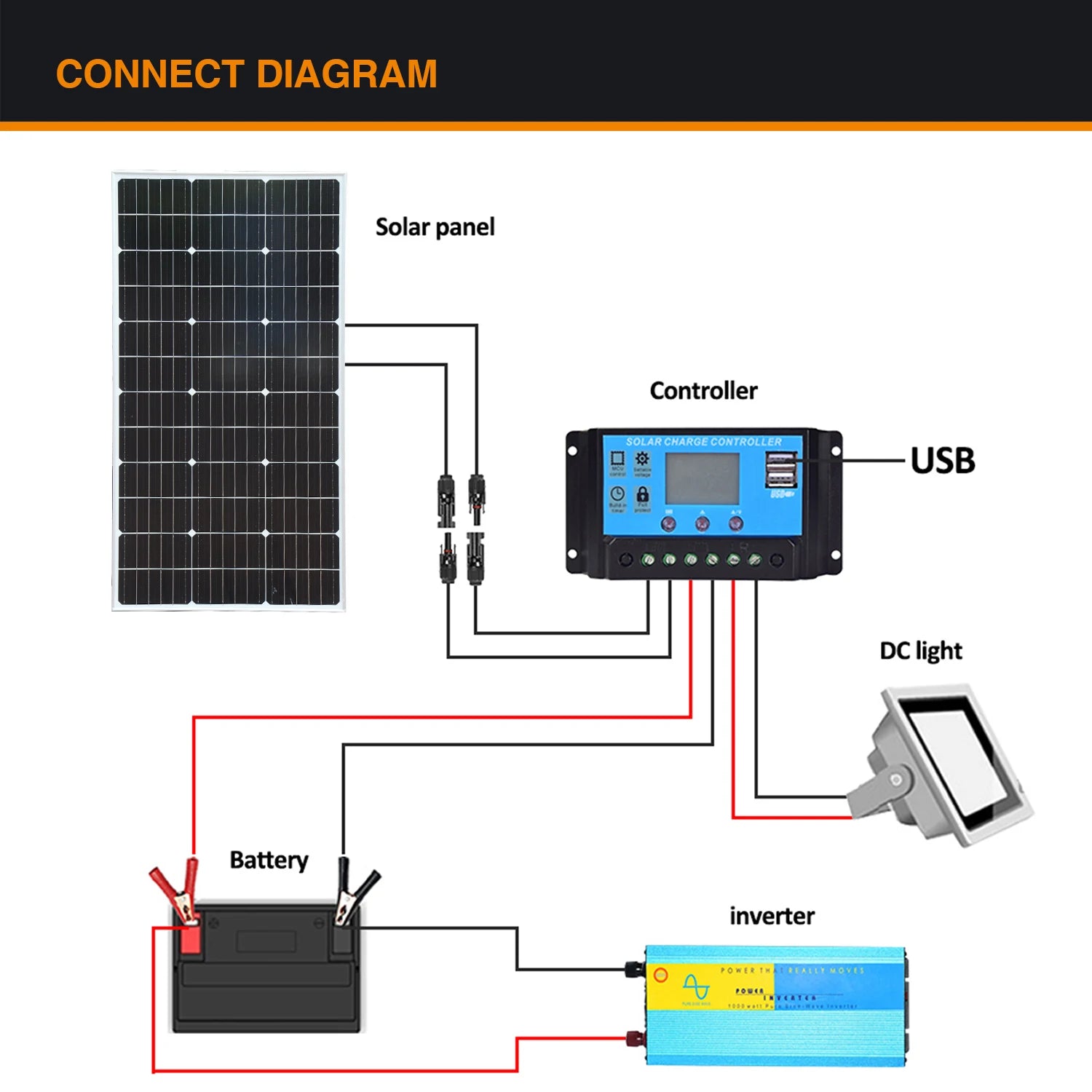

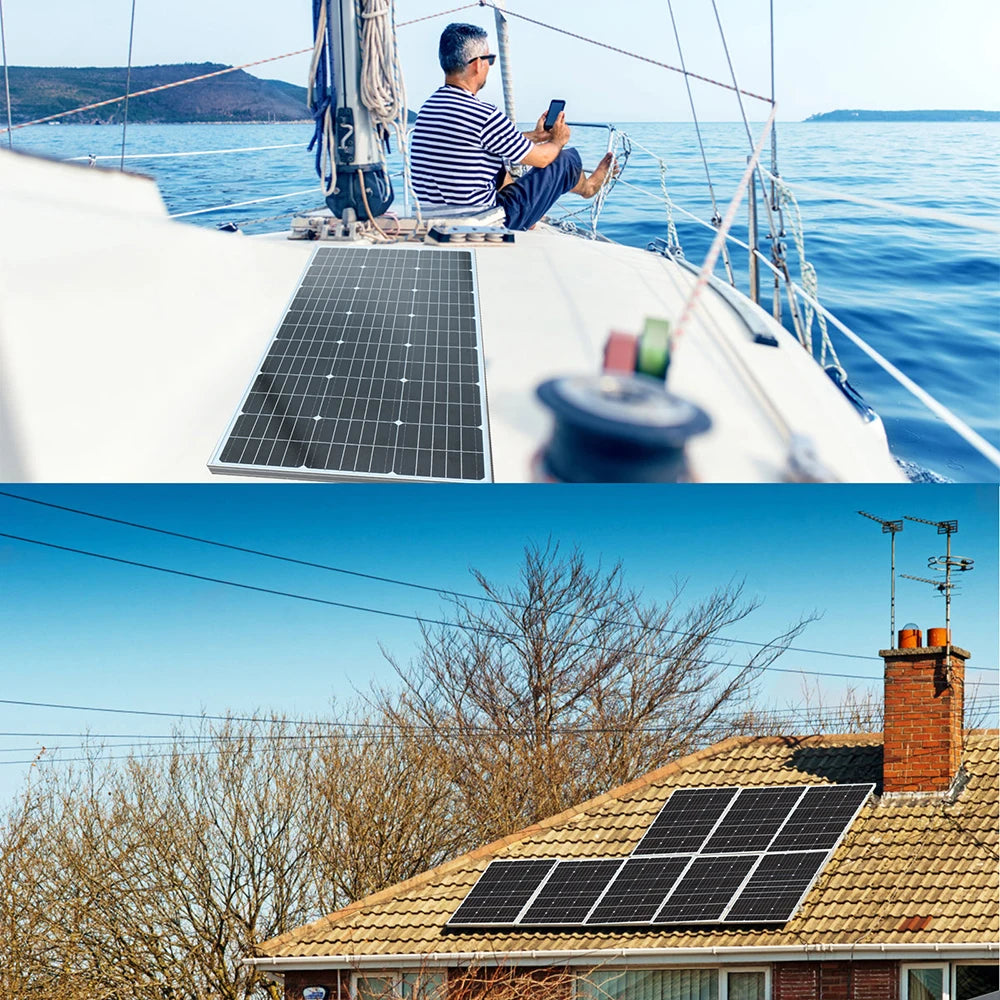

Basic components for grid connected and off grid solar panel systems, RVs, Ry boats, and Green house solar panels.

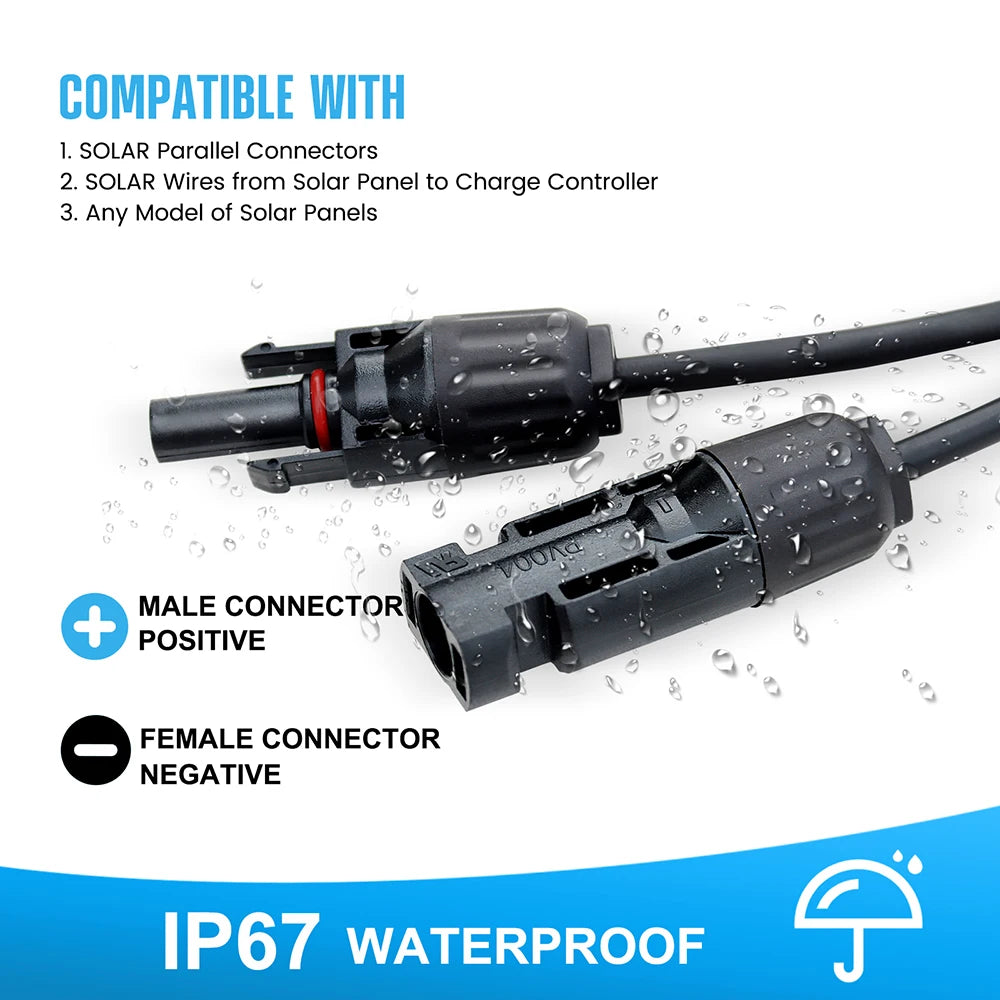

Diodes are pre-installed in junction box and a pair of 24-inches cables with M C -4 connectors comes with the panel automatically

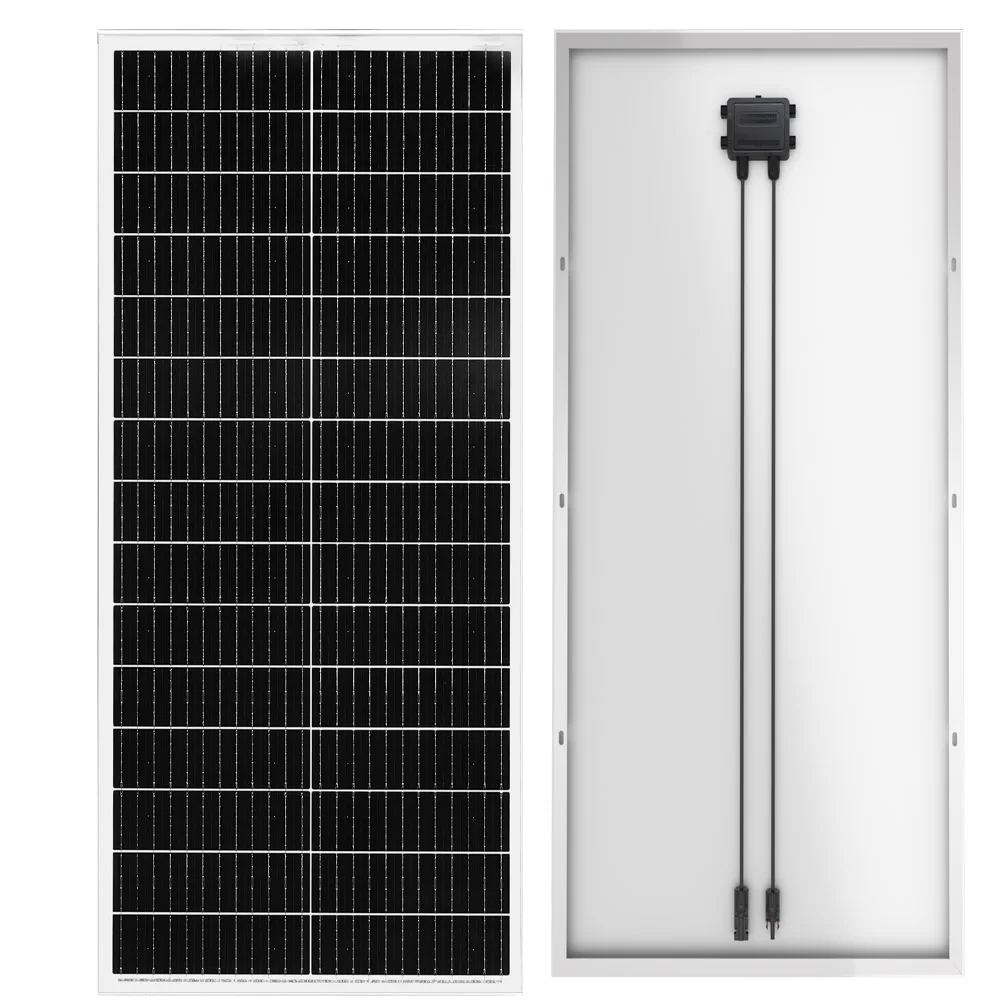

The back has 4 drill hole that can be quickly installed.

Product features:

Upgraded glass solar panel advantages

1.Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.

2.The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.

3. This product has excellent low light performance;

4.The monocrystalline silicon solar cells used have high conversion rates; Adopting an aluminum alloy frame, with high strength and strong resistance to mechanical impact;

5.With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment

6.The pre drive holes on the back of the panel allow for quick installation and fixation. Including pre drilled holes for grounding. Compatible with different installation systems, such as Z-bracket, pole mount, and tilt mount.

7. Power tolerance range (ensuring that the output power is within a positive and negative tolerance range of -3% to+3%);

8. Capable of withstanding strong winds and snow loads. Capable of withstanding wind loads (2400 Pascals) and snow loads (5400 Pascals).
