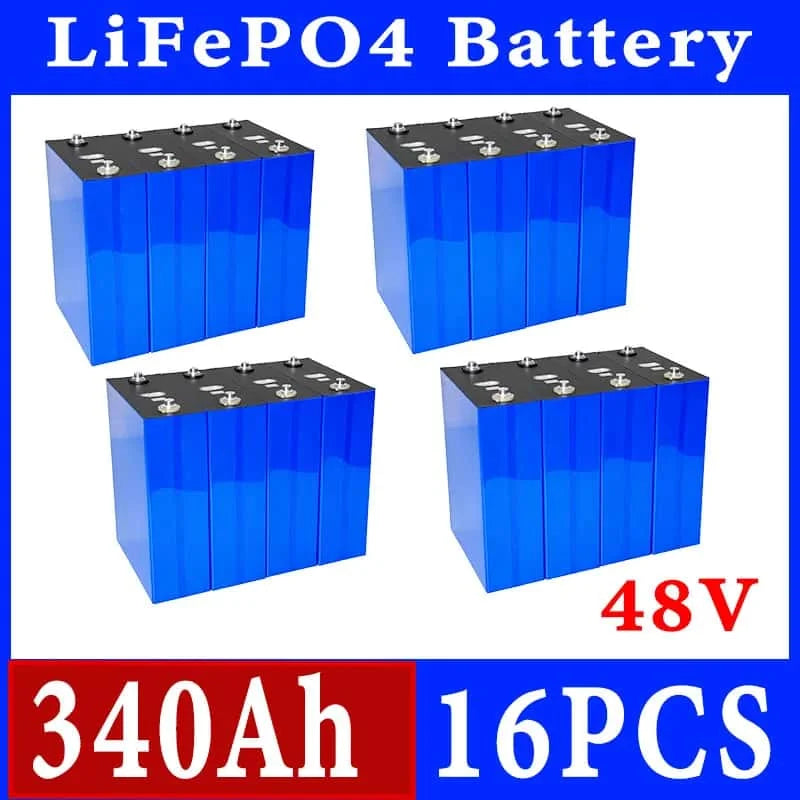

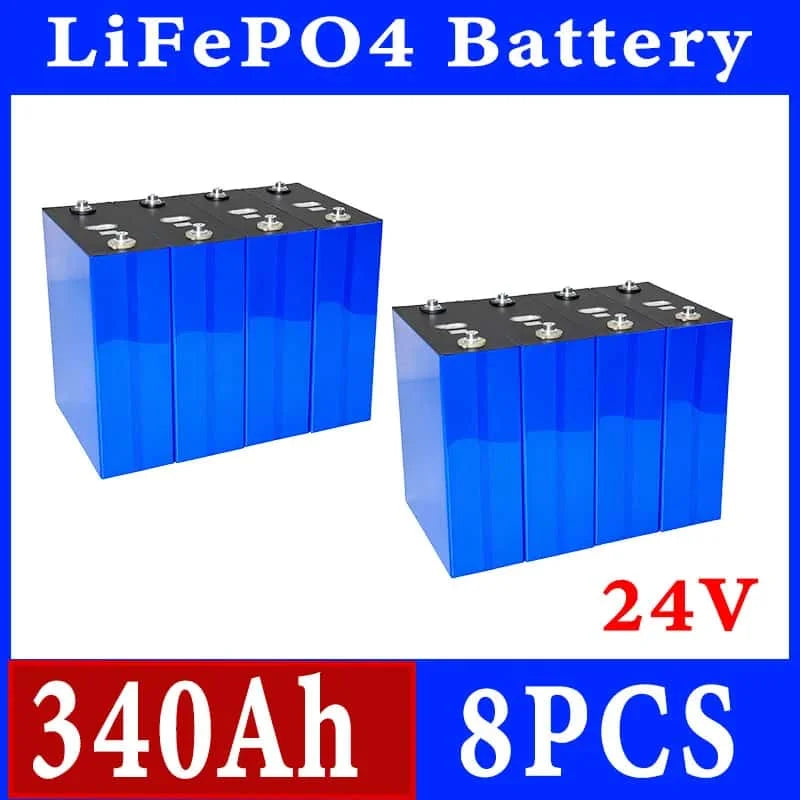

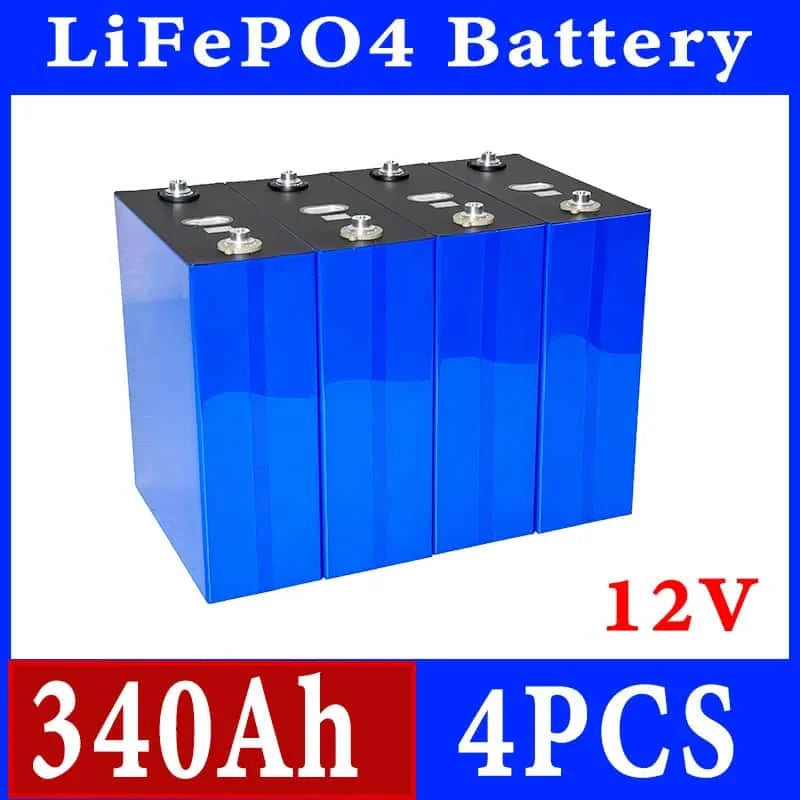

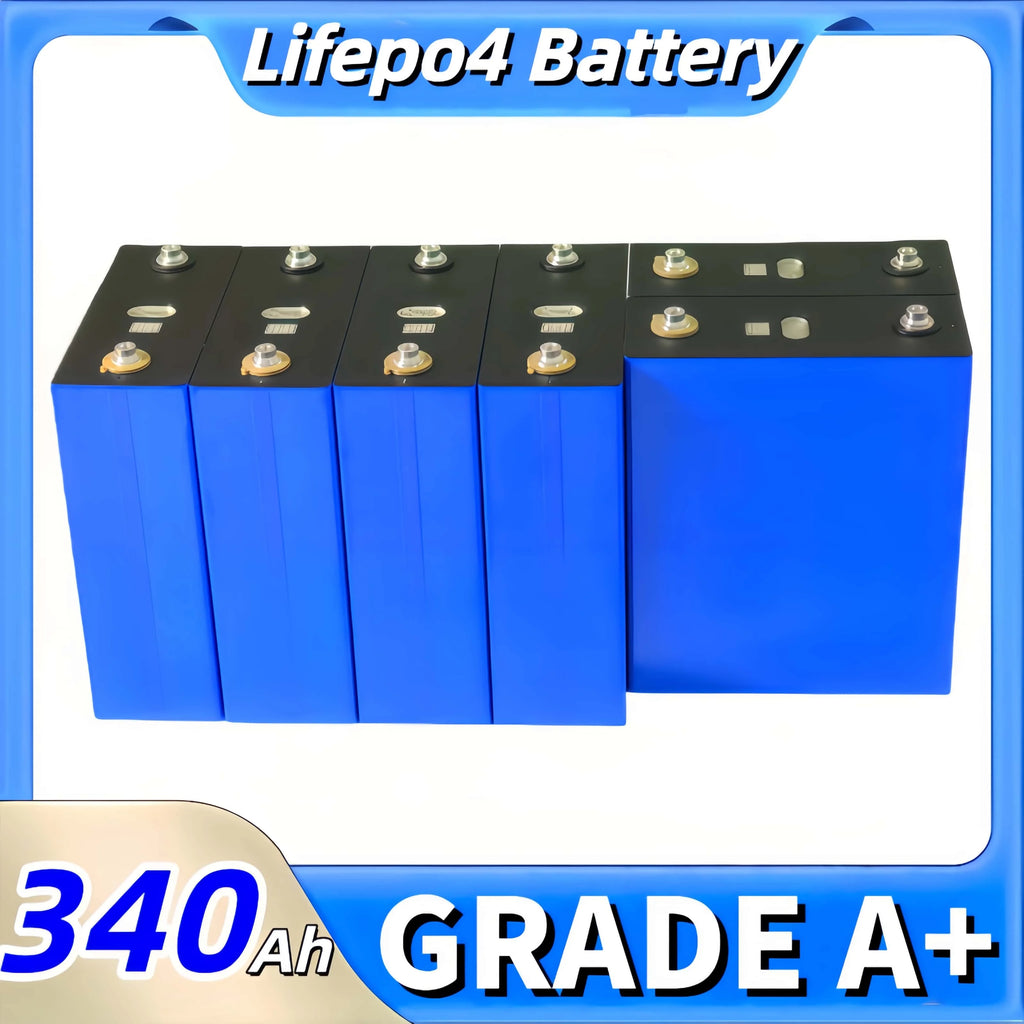

3.2V 340AH LiFePO4 Battery

[Product specifications]
Battery type: lithium iron phosphate
Grade: A+
Model: 3.2V 340Ah
Shell Material: Aluminum
Nominal voltage: 3.2V
Nominal capacity: 335~340Ah
Internal resistance:0.1~0.3mΩ
Combination: 4s 8s 12s 16s , etc
Recommended constant current: 160A (0.5C)
Discharge cut-off voltage: 2.5V (Min 2.0V)
Recommend constant current: 340A (1C)
Maximum charging voltage: 3.65V
Maximum continuous discharge current: 340A (1C)
Max. discharge current: 3C
Constant current: 160A (0.5C)
Charging method: CC / CV
Charging voltage: 3.65V
Cycle life: 10000 times (80% DOD)
Weight: About 5.56KG
Size: 215*175*72mm
Charging temperature: 0~45°C
Discharge temperature: -30~65°C

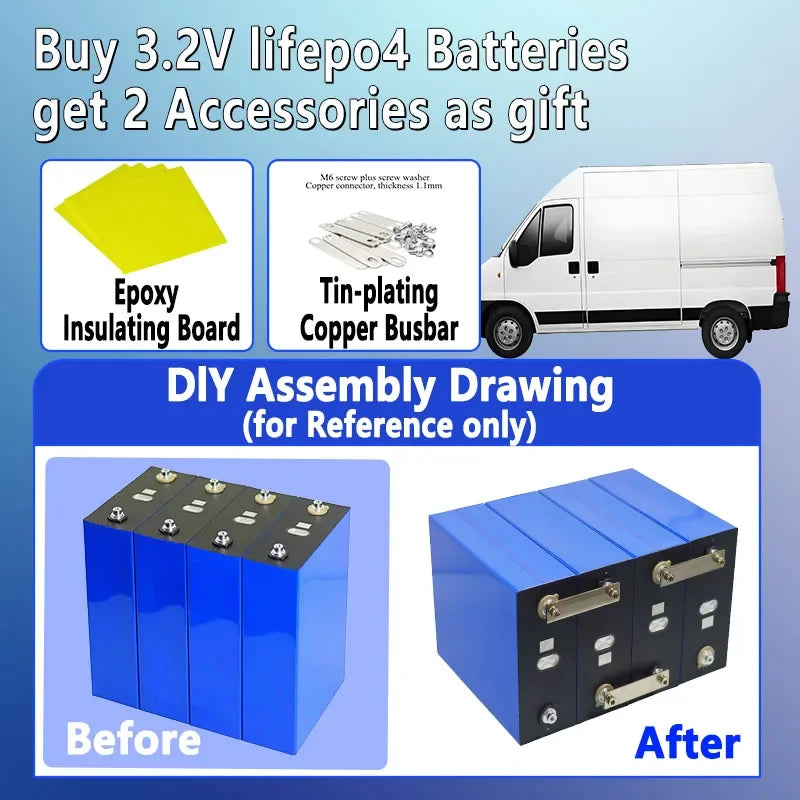

Shipping list:
3.2V 340Ah Battery
Screw
Copper sheet
3240 insulated epoxy board

Application range:
Solar energy storage system solar power ups motor starting battery, Electric cars, Engine start batteries, power tools, golf carts, touring cars, electric motorcycles, electric bicycles, power tools, solar storage,wind energy systems, LED Street lamp, Backup system and UPS, mobile devices, backup power supplies, RV, caravans, inverter, etc.
Passenger cars and commercial plug-in hybrid electric vehicles (PHEV)
Passenger cars and commercial battery electric vehicles (BEV)

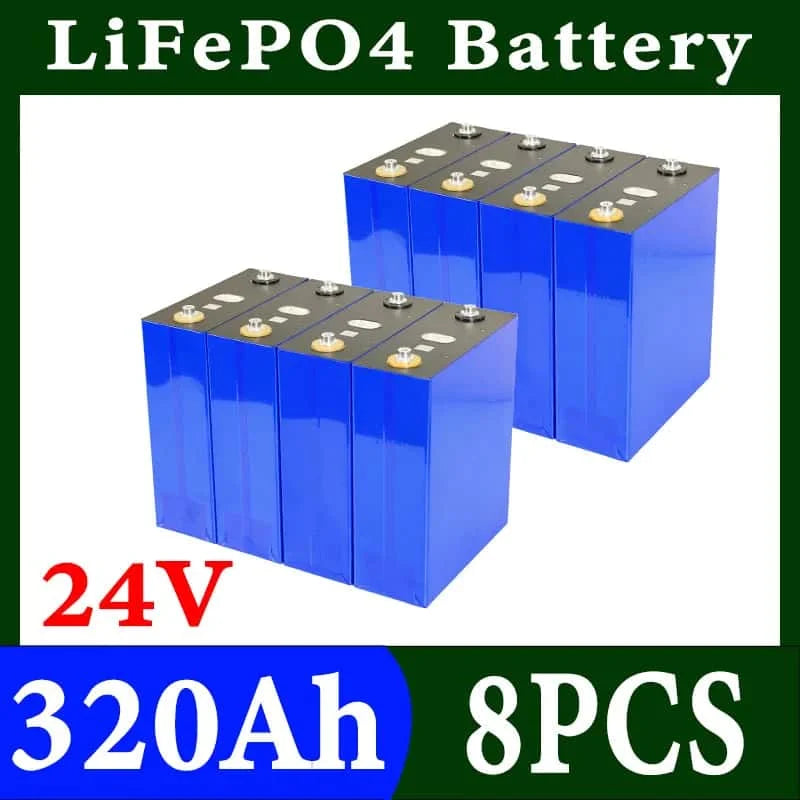

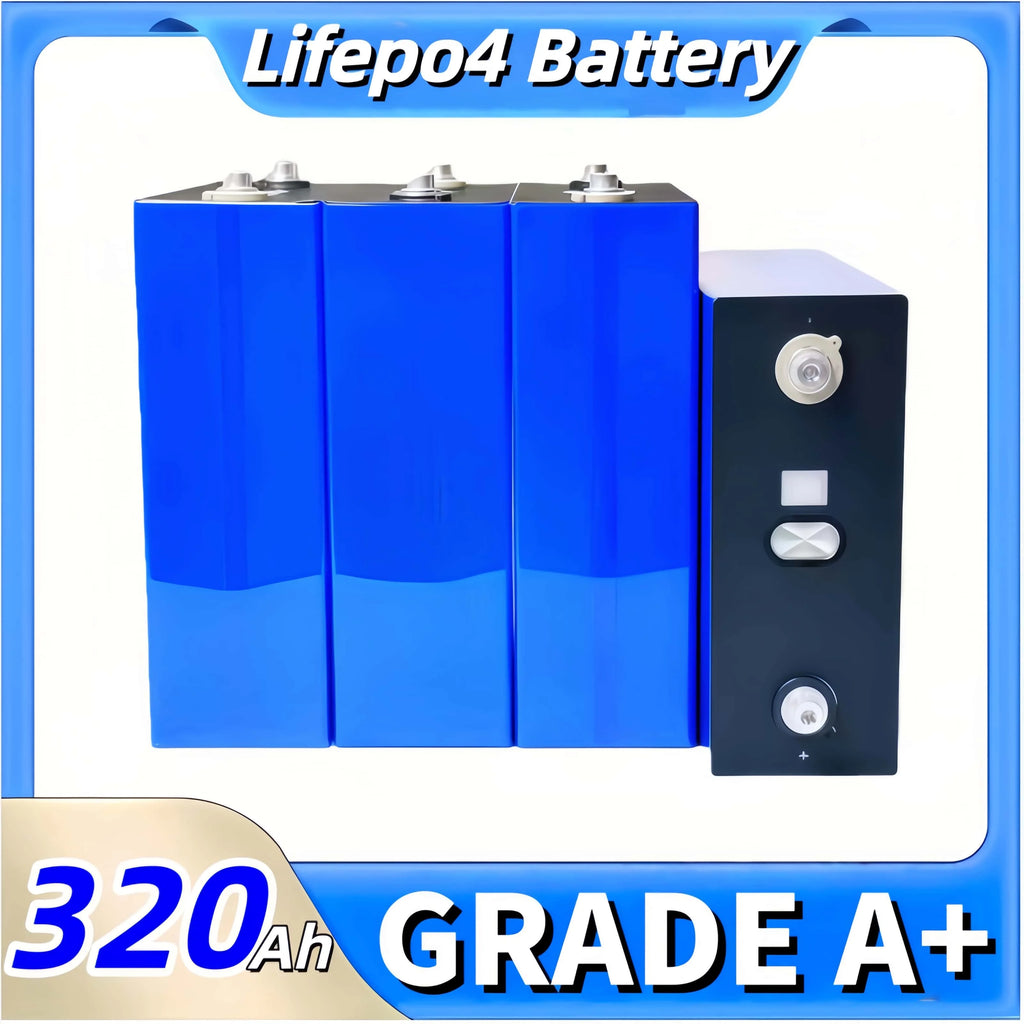

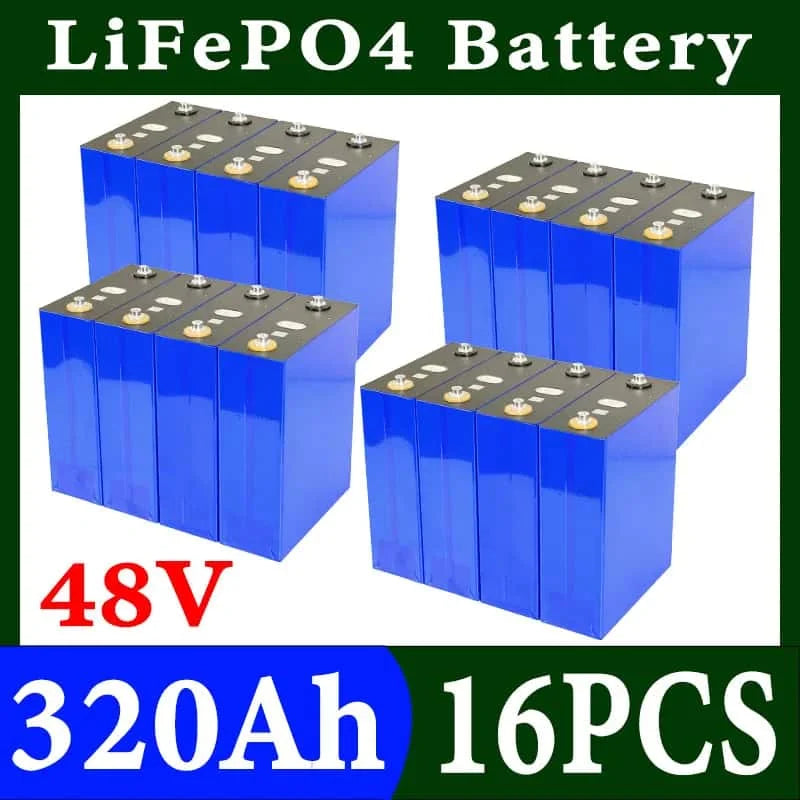

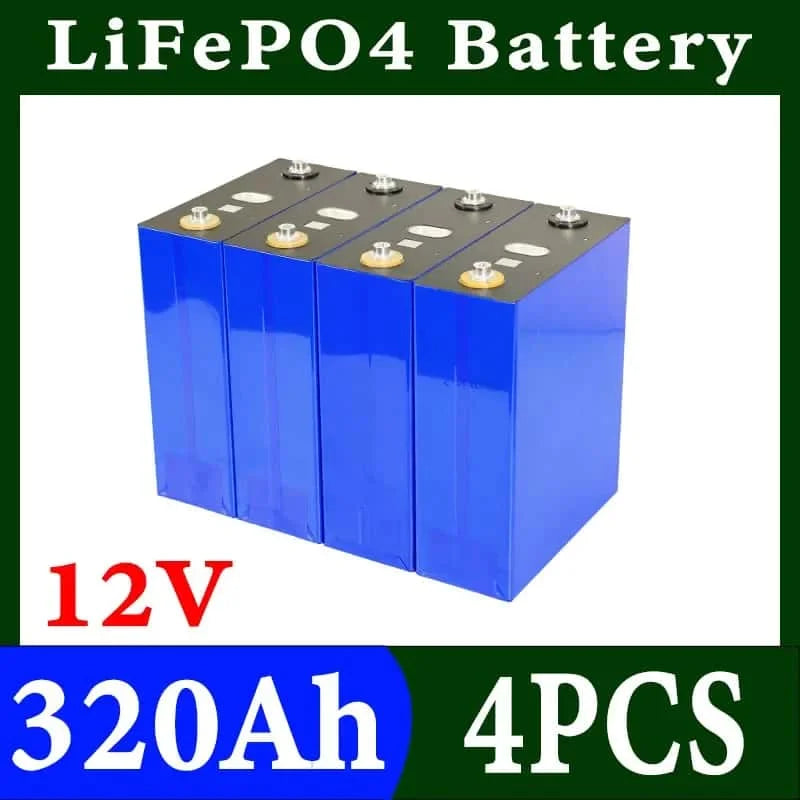

3.2V 320AH LiFePO4 Battery

[Product specifications]
Battery type: lithium iron phosphate
Grade: A+
Model: 3.2V 320Ah
Shell Material: Aluminum
Nominal voltage: 3.2V
Nominal capacity: 300~330Ah
Internal resistance:0.1~0.3mΩ
Combination: 4s 8s 12s 16s , etc
Recommended constant current: 160A (0.5C)
Discharge cut-off voltage: 2.5V (Min 2.0V)
Recommend constant current: 320A (1C)
Maximum charging voltage: 3.65V
Maximum continuous discharge current: 320A (1C)
Max. discharge current: 3C
Constant current: 160A (0.5C)
Charging method: CC / CV
Charging voltage: 3.65V
Cycle life: 8000 times (80% DOD)
Weight: About 5.56KG
Size: 215*175*72mm
Charging temperature: 0~45°C
Discharge temperature: -30~65°C

Shipping list:
3.2V 320Ah Battery
Screw
Copper sheet
3240 insulated epoxy board

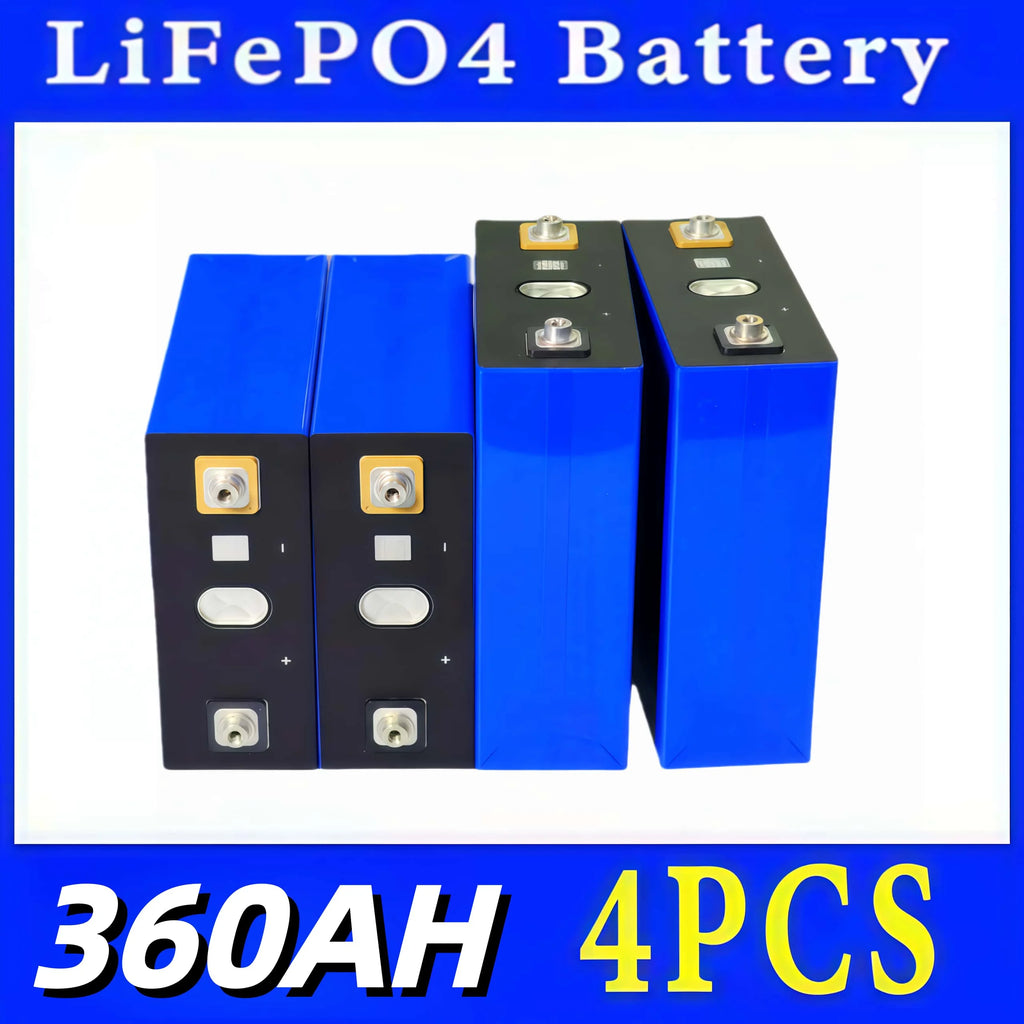

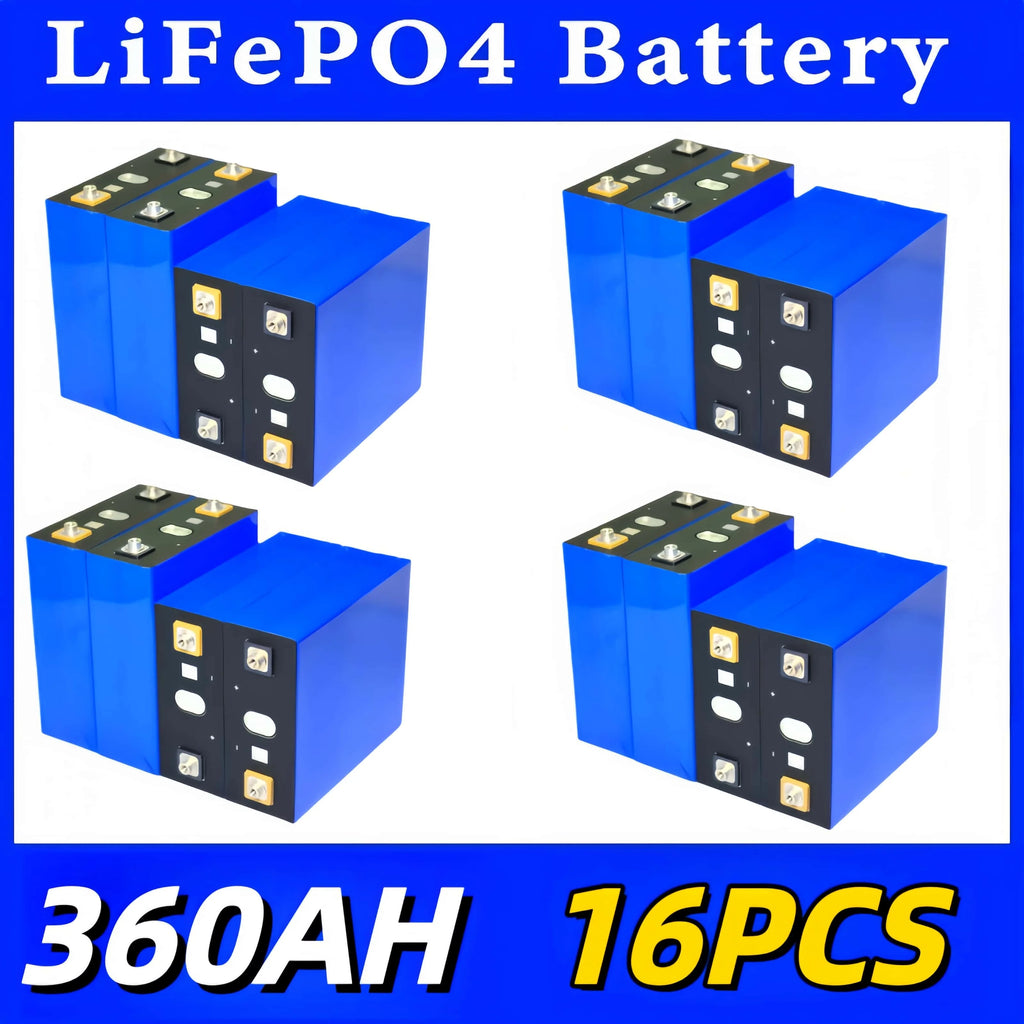

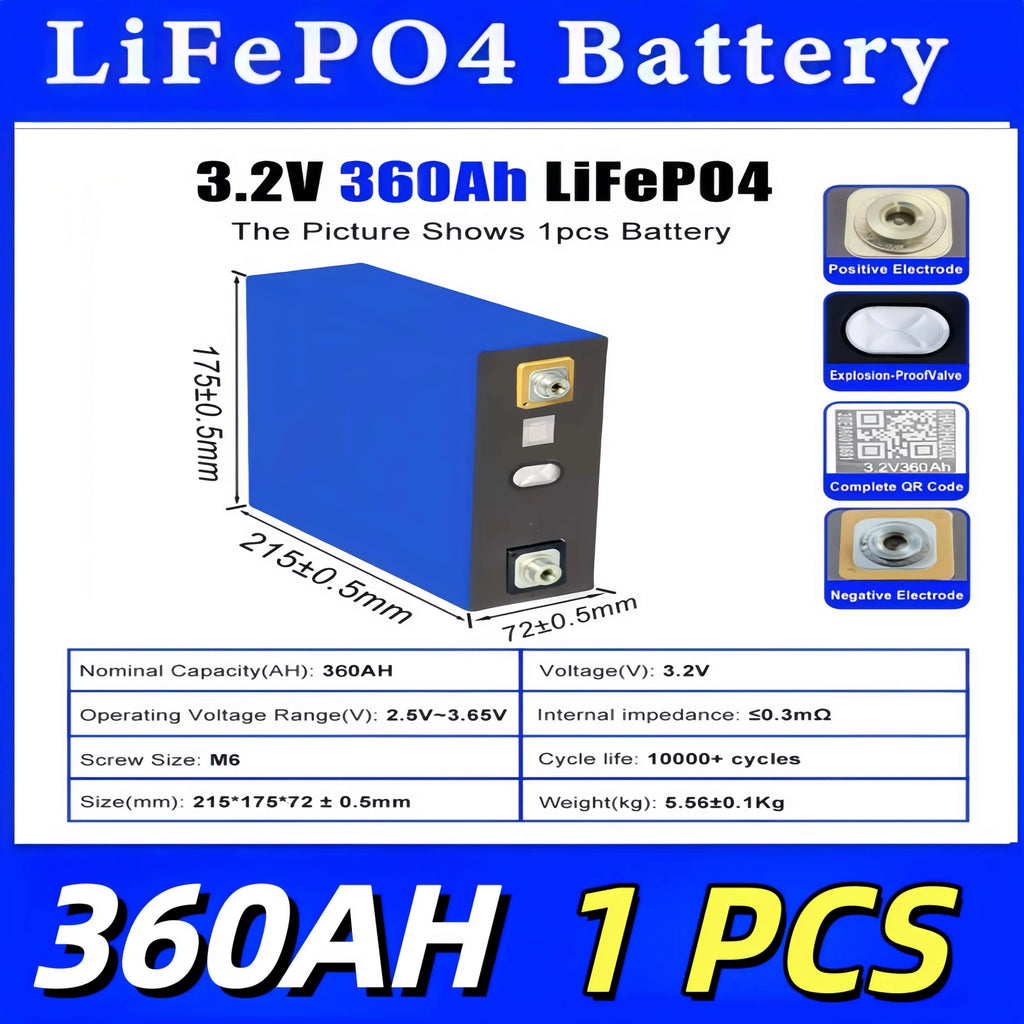

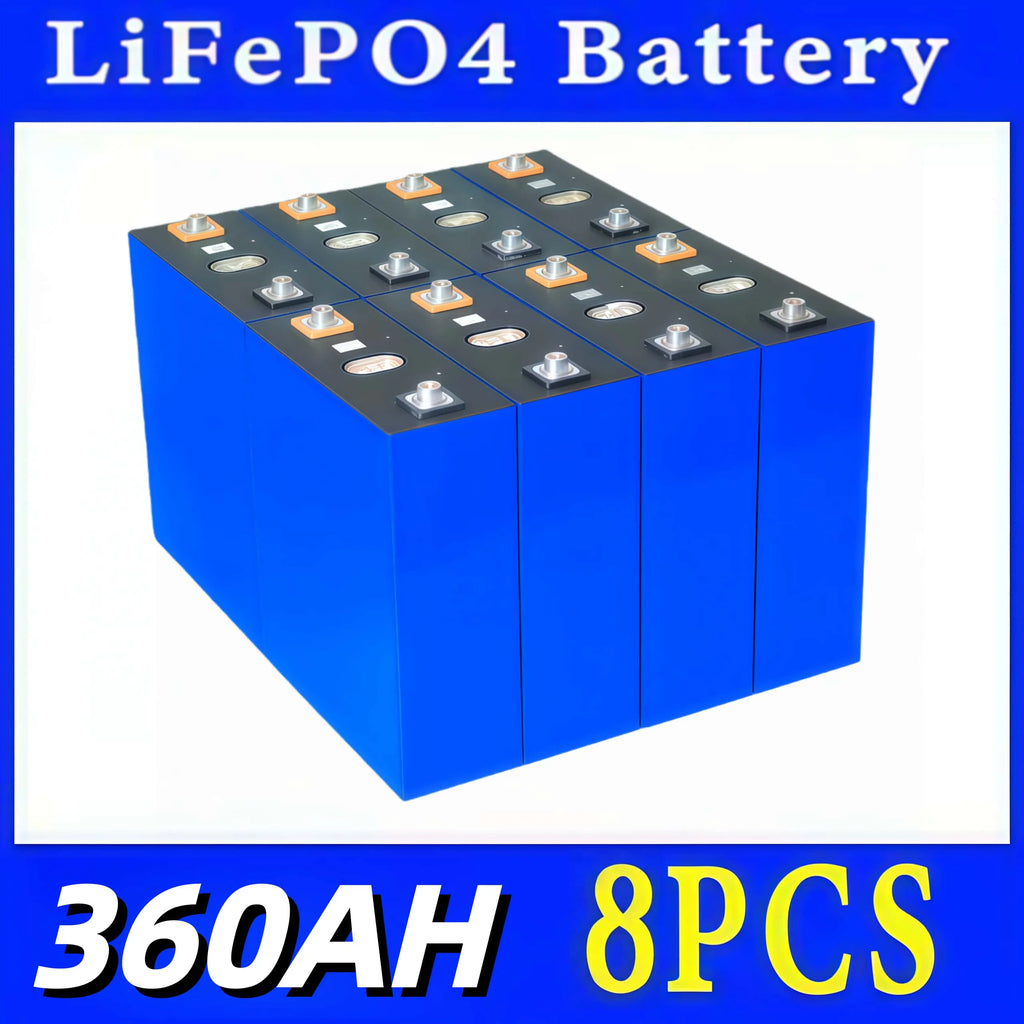

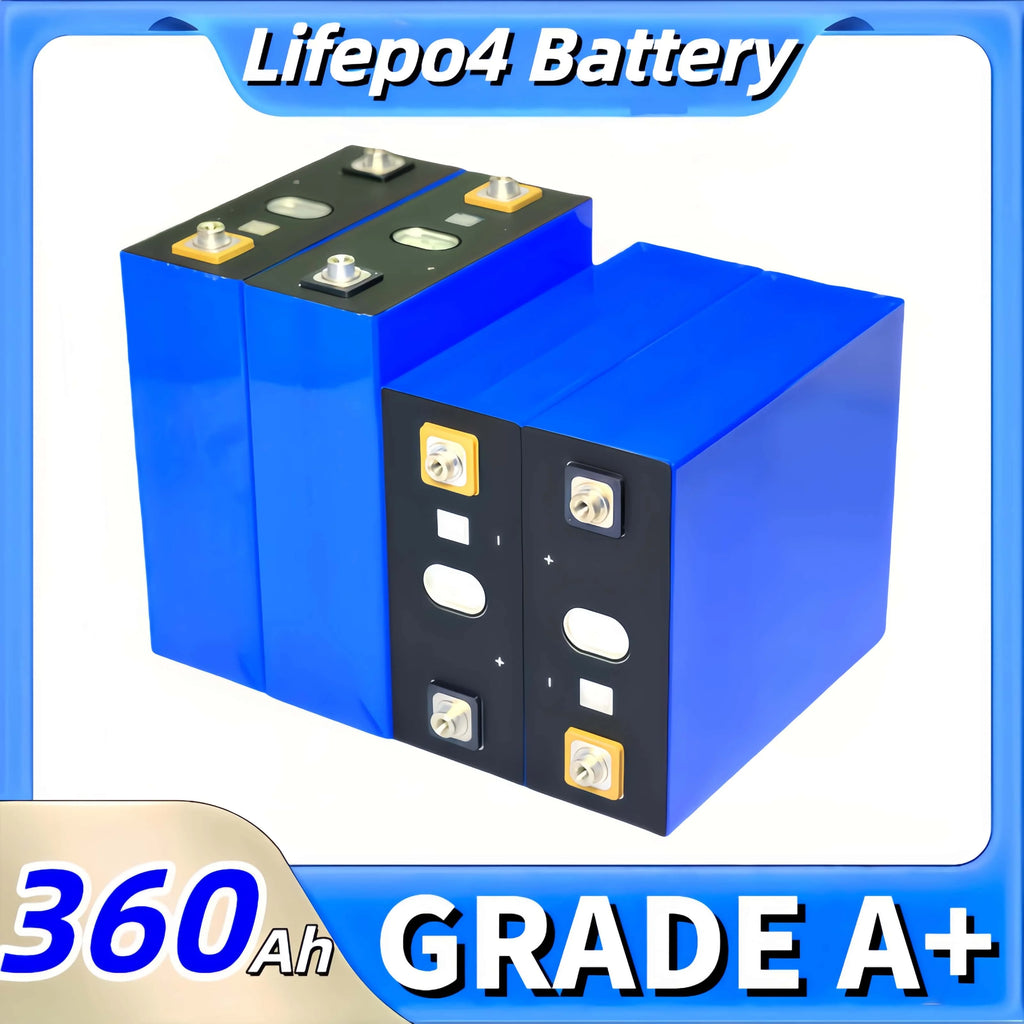

3.2V 360AH LiFePO4 Battery

[Especificaciones del producto]
Tipo de batería: fosfato de hierro y litio
Grado: A+
Modelo: 3,2 V 360 Ah
Capacidad real: 335-360ah
Material de la coque: aluminio
Nominal de tensión: 3,2 V
Nominal de capacidad: 360 Ah
Interno de resistencia: 0,1 ~ 0,3 m Ω
Combinación: 2s 4s 8s 12s 16s 24s 32s 64s, etc.
Recomendado constante de corriente: 160 A (0,5 C)
Descarga de corte de tensión: 2,5 V (mínimo 2,0 V)
Recomendación constante de corriente: 360A (1C)
Máxima tensión de carga: 3.65 V
Máximo continuo de descarga de corriente: 360A (1C)
Máximo de descarga de corriente: 3C
Constante de corriente: 160 A (0,5 C)
Método de carga: CC/CV
Carga de tensión: 3.65 V
Vida útil: 10.000 ciclos (80 % DOD)
Peso: alrededor 5,56 kg
Grado: 215*175*72mm
Temperatura de carga: 0-45° C
Temperatura de emisión: -30 ~ 65° C
Lista de envío:
Batería 3,2 V 360 Ah
vis
Hoja de cobre
Aislador de panel

Domaine de aplicación :

Sistema de almacenamiento de energía solar, batería de arranque de motor de energía solar, coches eléctricos, baterías de arranque de motor, herramientas eléctricas, voiturettes de golf, coches de turismo, motos eléctricas, bicicletas eléctricas, herramientas eléctricas, almacenamiento solar, sistemas de energía solar, lampadaire LED, sistema de respaldo y UPS, dispositivos móviles, alimentación de respaldo, autocares, caravanas, onduladores, etc.
Voitures de turismo et vehículos híbridos eléctricos enchufables comerciales (PHEV)
Voitures de turismo et vehículos eléctricos a batería comercial (BEV)

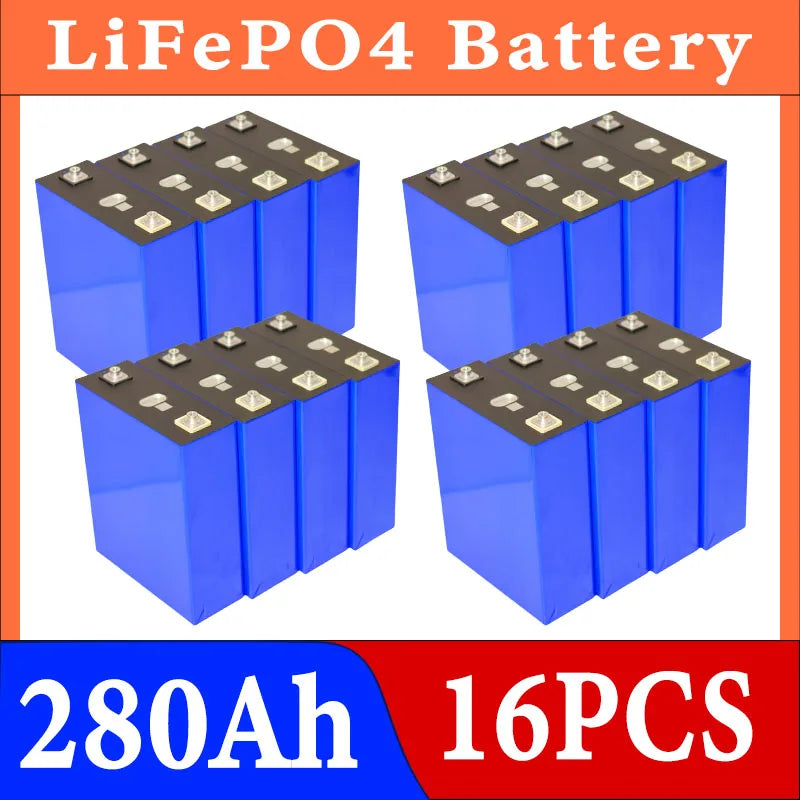

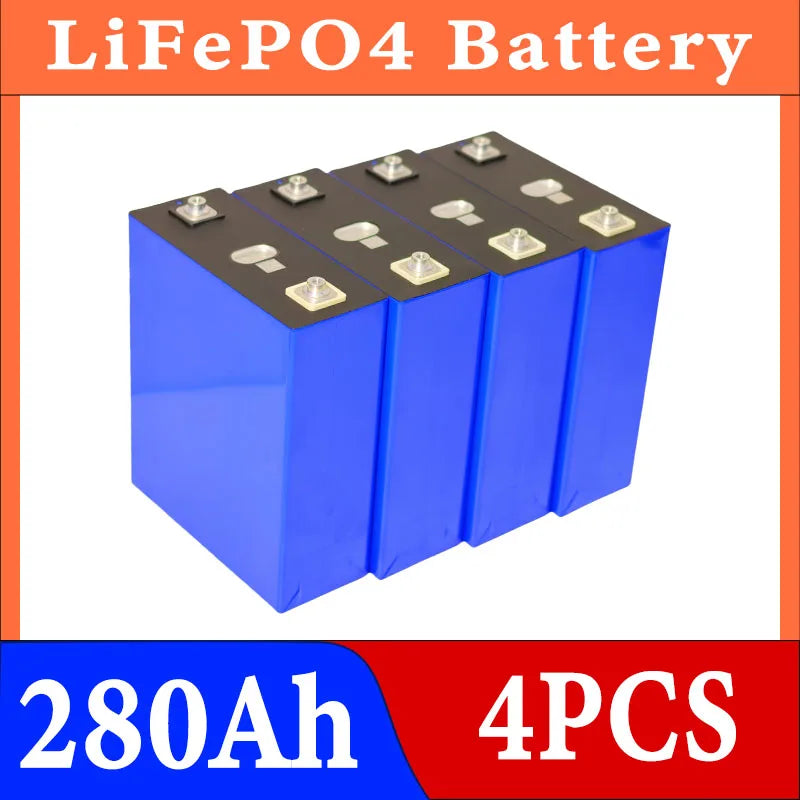

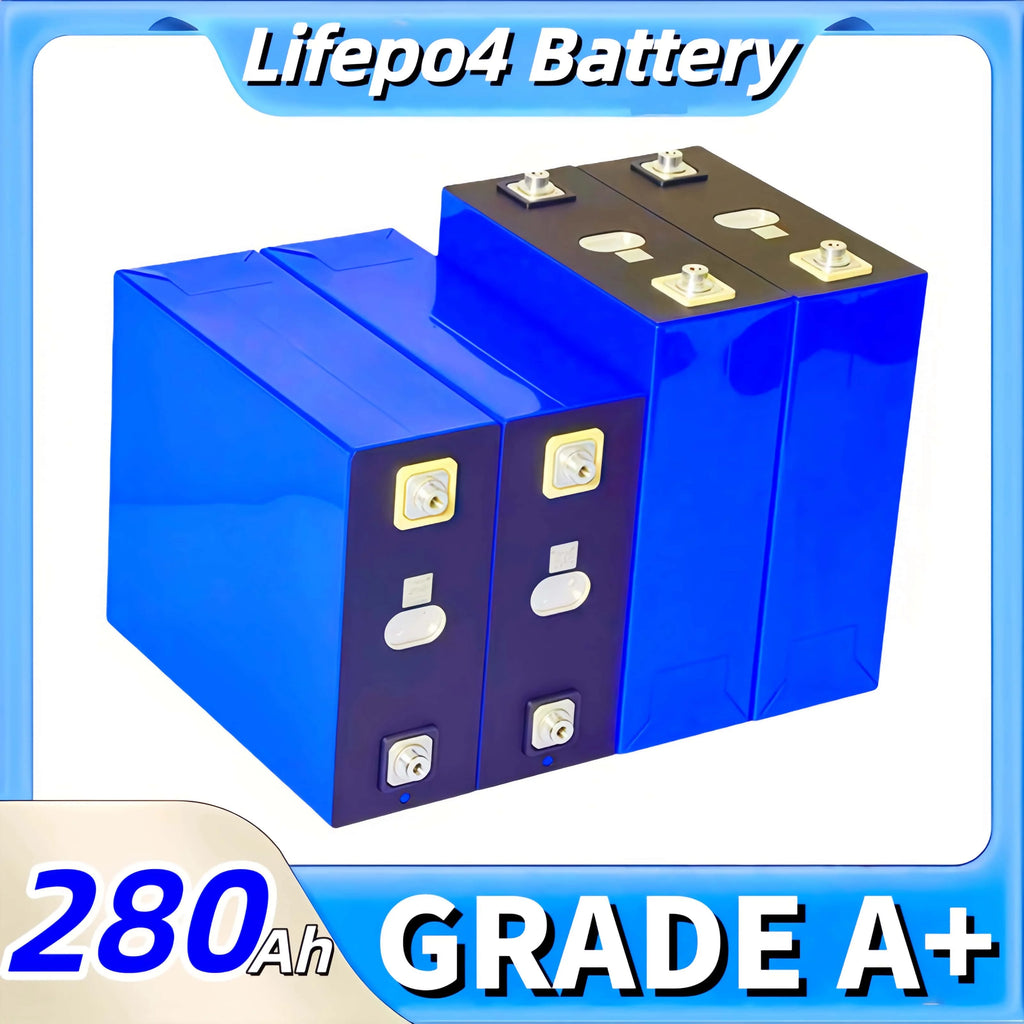

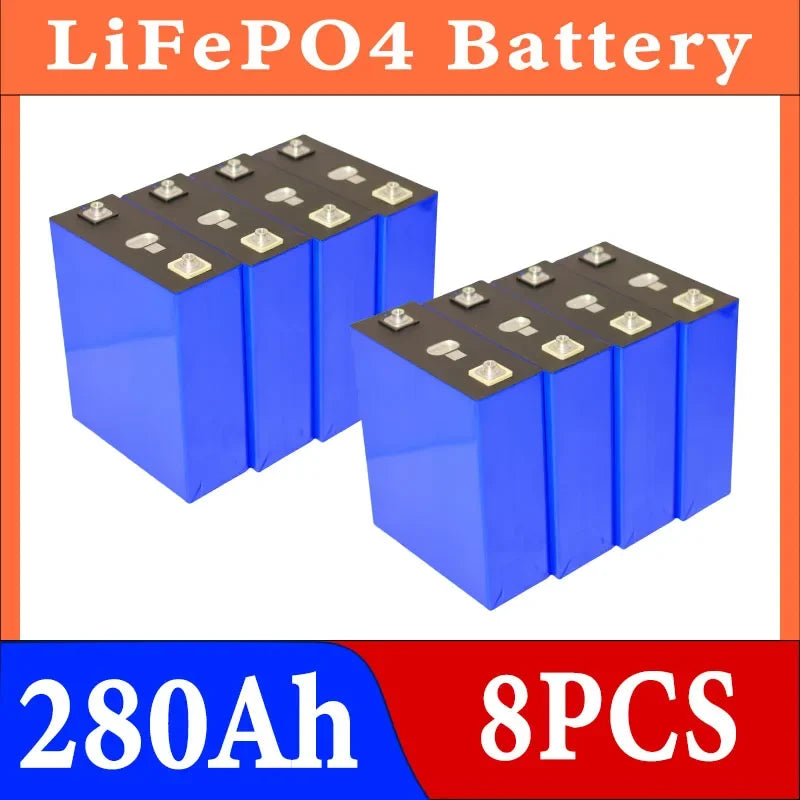

3.2V 280AH LiFePO4 Battery

[Product specifications]
Battery type: lithium iron phosphate
Model: 3.2V 280AH
Shell Material: Aluminum
Nominal voltage: 3.2V
Rated capacity: 280AH
Minimum capacity: 280ah
Internal resistance: ≤0.5mΩ
Weight: About 5.5KG
Size:3.2V 280AH:215*175*72mm
Recommended constant current: 0.5C
Discharge cut-off voltage: 2.5V
Recommend constant current: 1C
Charging cut-off voltage: 3.65V
Maximum continuous discharge current: 1C
Maximum pulse discharge current: 3C
Fast charging method
Constant current: 0.5C
Charging voltage: 3.65V
Recommend constant current: 1C
Cycle life: 8000 times (80% DOD)
Charging environment temperature: 0~45°C
Discharge environment temperature: -25~65°C

Application range:
Electric cars, airplane models, golf carts, touring cars, electric motorcycles, electric bicycles, UPS supply Engine starting battery, solar storage,wind energy systems, power tools, mobile devices, backup power supplies, RV, caravan, etc.
Passenger cars and commercial plug-in hybrid electric vehicles (PHEV)
Passenger cars and commercial battery electric vehicles (BEV)

Safety Precaution:
1.Do not throw battery into water or make it wet
2.Keep the battery away from heat source
3.Do not throw the battery into fire or heat the battery
4.Forbid to hammer to trample the battery
5.Forbid disassembling the battery in anyway
